Computes a receiver operating characteristic (ROC) curve under a hypothetical intervention where treatment is set to a specific level.
Usage
cf_roc(
predictions,
outcomes,
treatment,
covariates,
treatment_level = 0,
estimator = c("dr", "om", "ipw", "naive"),
propensity_model = NULL,
outcome_model = NULL,
n_thresholds = 201,
thresholds = NULL,
include_naive = TRUE,
...
)Arguments
- predictions
Numeric vector of model predictions.
- outcomes
Numeric vector of observed outcomes.
- treatment
Numeric vector of treatment indicators (0/1).
- covariates
A matrix or data frame of baseline covariates (confounders).
- treatment_level
The counterfactual treatment level (default: 0).
- estimator
Character string specifying the estimator:
"naive": Naive estimator (biased)"cl": Conditional loss estimator"ipw": Inverse probability weighting estimator"dr": Doubly robust estimator (default)
- propensity_model
Optional fitted propensity score model. If NULL, a logistic regression model is fit using the covariates.
- outcome_model
Optional fitted outcome model. If NULL, a regression model is fit using the covariates among treated/untreated. For binary outcomes, this should be a model for E[Y|X,A] (binomial family). For continuous outcomes, this should be a model for E[L|X,A] (gaussian family).
- n_thresholds
Integer specifying the number of thresholds to evaluate. Thresholds are evenly spaced between 0 and 1. Default is 201.
- thresholds
Optional numeric vector of specific thresholds to use. If provided, overrides
n_thresholds.- include_naive
Logical indicating whether to also compute the naive ROC curve for comparison. Default is TRUE.
- ...
Additional arguments passed to internal functions.
Value
An object of class c("cf_roc", "roc_curve") containing:
- thresholds
Thresholds used
- sensitivity
Sensitivity (TPR) at each threshold
- fpr
False positive rate at each threshold
- specificity
Specificity at each threshold
- naive_sensitivity
Naive sensitivity (if include_naive=TRUE)
- naive_fpr
Naive FPR (if include_naive=TRUE)
- auc
Area under the ROC curve (computed via trapezoidal rule)
- naive_auc
Naive AUC (if include_naive=TRUE)
- estimator
Estimator used
- n_obs
Number of observations
Details
The ROC curve plots sensitivity (true positive rate) against the false positive rate (1 - specificity) at various classification thresholds.
This function computes counterfactual sensitivity and FPR at multiple
thresholds using the estimators from cf_sensitivity() and cf_fpr().
The area under the curve (AUC) is computed using the trapezoidal rule on
the discrete threshold grid. For exact AUC estimation, use cf_auc()
which employs the Wilcoxon-Mann-Whitney statistic.
References
Coston, A., Mishler, A., Kennedy, E. H., & Chouldechova, A. (2020). "Counterfactual risk assessments, evaluation, and fairness." Proceedings of the 2020 Conference on Fairness, Accountability, and Transparency, 582-593.
Examples
# Generate example data
set.seed(123)
n <- 500
x <- rnorm(n)
a <- rbinom(n, 1, plogis(-0.5 + 0.5 * x))
y <- rbinom(n, 1, plogis(-1 + x - 0.5 * a))
pred <- plogis(-1 + 0.8 * x)
# Compute counterfactual ROC curve
roc <- cf_roc(
predictions = pred,
outcomes = y,
treatment = a,
covariates = data.frame(x = x),
n_thresholds = 51
)
print(roc)
#>
#> Counterfactual ROC Curve
#> ========================
#>
#> Estimator: DR
#> Treatment level: 0
#> N: 500
#> Thresholds evaluated: 51
#>
#> AUC: 0.7326
#> Naive AUC: 0.7283
#>
#> Use plot() to visualize the ROC curve.
#>

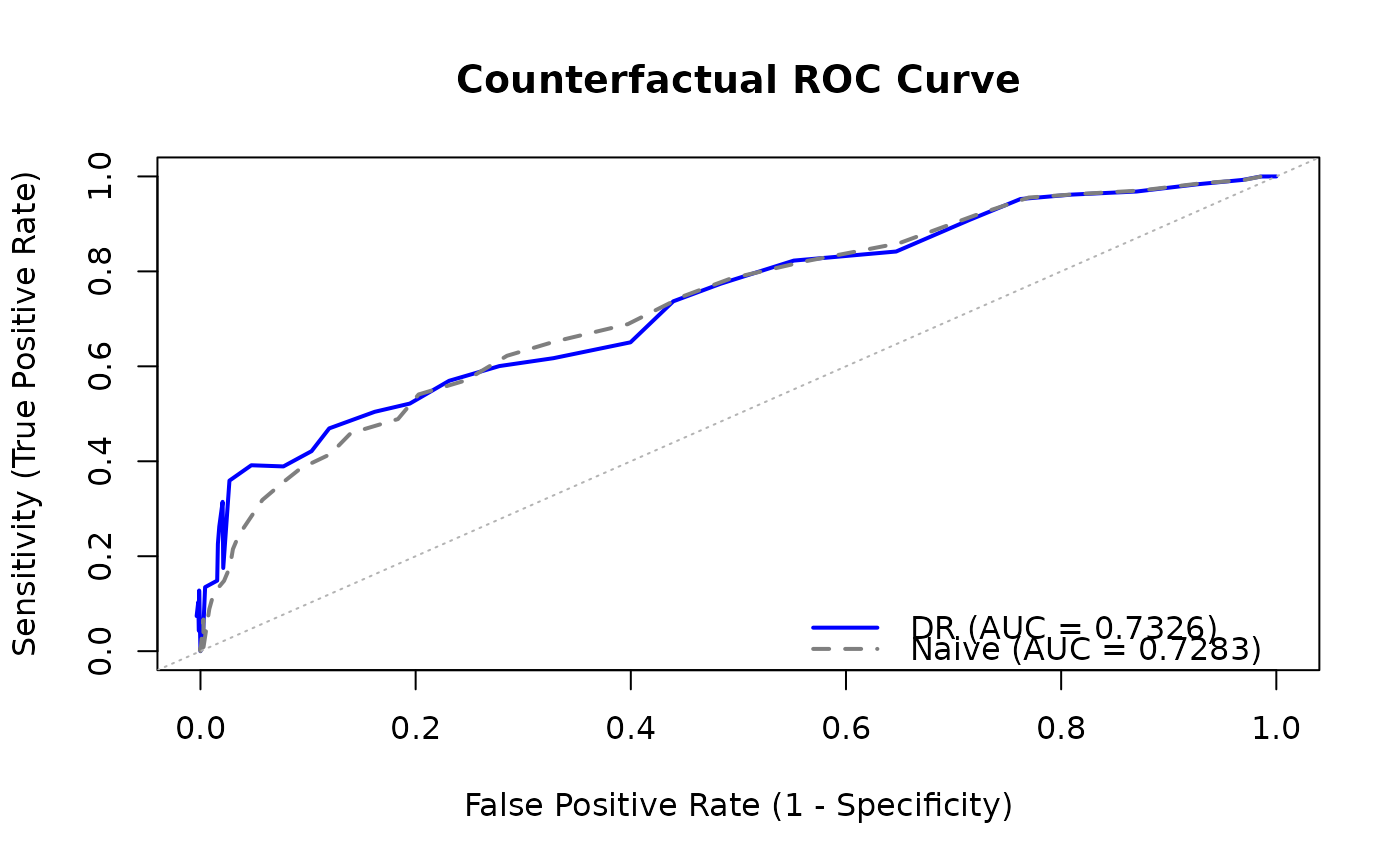

# Plot the ROC curve
plot(roc)
